DCA ASS125B Straight Grinder (710W, 125mm wheel size)

KSh 11,500.00

High-Torque Low-Speed Drive: Operating at 5,000 RPM, the motor delivers high rotational torque optimized for larger 125 mm thick vitrified or resinoid bonded grinding wheels without stalling under heavy radial pressure.
Extended Spindle Housing: The narrow, elongated front housing allows operators to reach deep inside pipes, structural columns, steel tanks, and complex weldments.
Heavy-Duty Cast Iron Gear Casing: Machined metal gear and spindle housing absorbs high mechanical shocks, dissipates heat efficiently, and maintains precise spindle alignment during heavy grinding passes.
Steel Protective Wheel Guard: Heavy-gauge steel wheel guard covers the top and rear half of the grinding wheel, directing sparks, metal filings, and wheel fragments away from the operator.
Rear Switch & Auxiliary Handle Support: Features a lock-on trigger switch at the rear grip combined with a sturdy side handle mounting point near the front barrel for balanced two-handed leverage.

Add to wishlist

Category: Electrical power tools

Description
Reviews (0)

Description

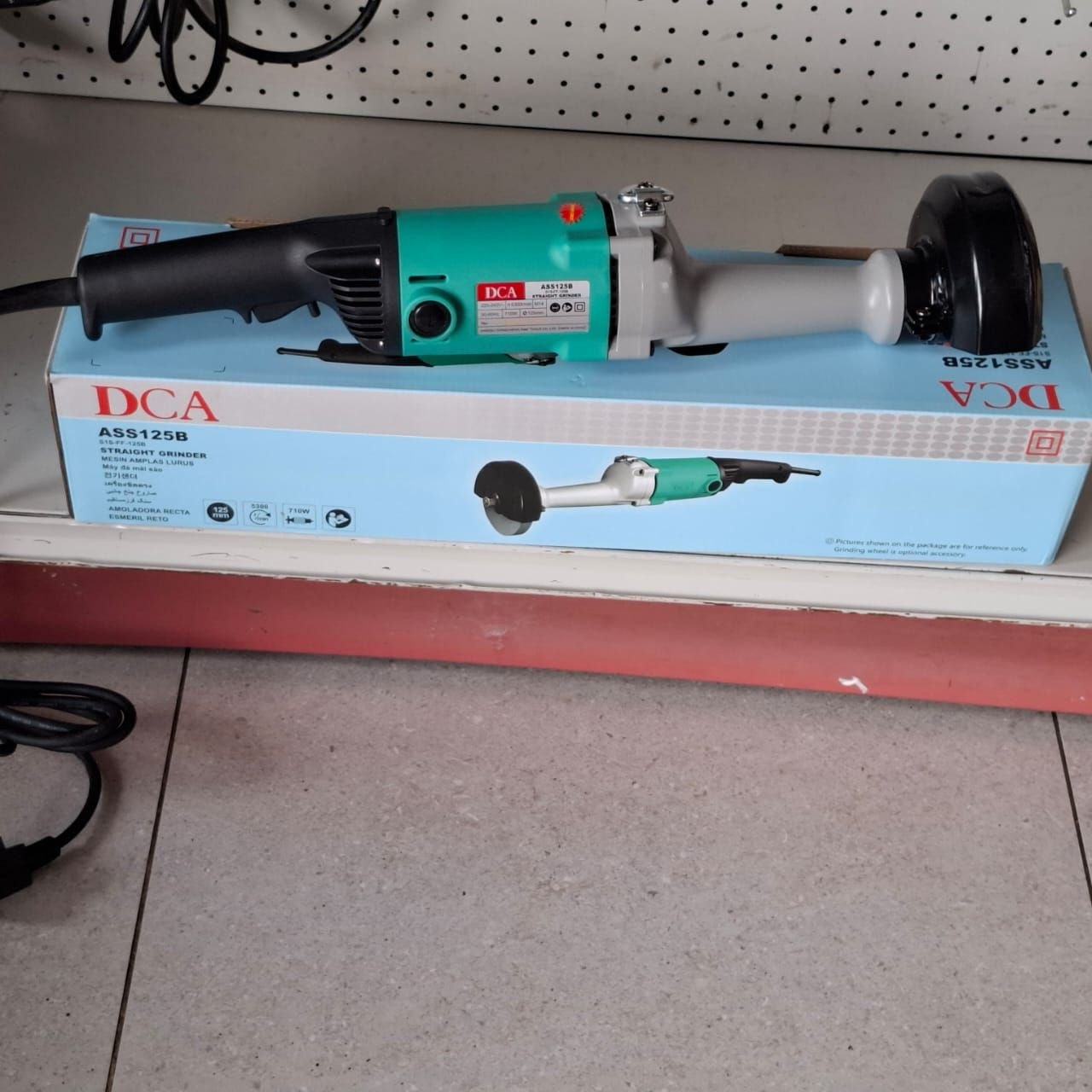

DCA ASS125B is a heavy-duty corded electric straight grinder (also referred to as a die or horizontal grinder) engineered for heavy metal fabrication, casting cleanup, internal pipe grinding, and weld seam dressing. Driven by a 710W motor operating at 5,000 RPM, it uses a 125 mm (5-inch) bonded grinding wheel mounted inline on a heavy spindle shaft to reach confined spaces and internal diameters where conventional angle grinders cannot fit.

Technical Specifications

Feature	Specification
Rated Power Input	710 W
No-Load Speed	5,000 RPM
Max. Wheel / Disc Diameter	125 mm (5 inches)
Spindle Thread / Bore Size	M14 / 20 mm
Grinding Wheel Thickness Capacity	13 mm – 20 mm
Net Weight	~4.8 kg
Power Source	Corded Electric ( $220\text{V} - 240\text{V}$ )
