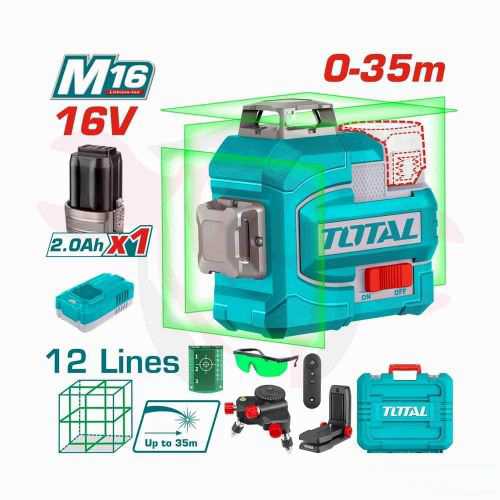

Total TLL301205 Cordless 3D laser level 0~35 m

TOTAL TLL301205 is a stand-alone 16V 12-line 3D green beam cordless laser level engineered for layout, tiling, ceiling installation, and structural partition alignment.

It projects three full $360^\circ$ laser planes (one horizontal and two vertical lines intersecting at $90^\circ$) to deliver complete 3D floor-to-ceiling coverage over distances up to 35 meters.

Key Specifications

• Model Number: TLL301205

• Laser Projection: 12 Lines — $1\times 360^\circ$ Horizontal plane & $2\times 360^\circ$ Vertical planes

• Laser Beam Type: High-Visibility Green Laser (Class II, $<1\text{ mW}$)

• Working Range: 0 to 35 meters

• Operating Voltage: 16V Cordless Li-Ion Platform

• Levelling & Line Accuracy: $\pm1.5\text{ mm}$ at 7 meters

• Self-Levelling Range: $\le 4^\circ$

• Operating Temperature: $0^\circ\text{C}$ to $+40^\circ\text{C}$

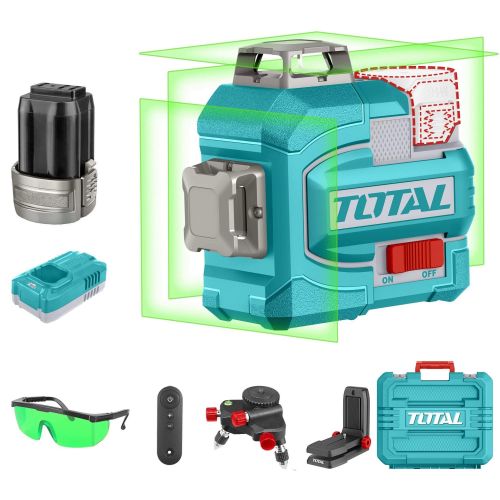

Key Accessories Included

• 1× 16V 2.0Ah Rechargeable Li-Ion Battery Pack (TFBLI1620 / TFBLI1626)

• 1× Fast Battery Charger (TFCLI1613 / USB Type-C support depending on batch)

• 1× Magnetic Liftable Rotating Wall Stand

• 1× Fine-Adjustment Rotary Base with 3 adjustable levelling feet

• 1× Remote Control Unit

• 1× Laser Target Plate & Green Safety Glasses

• 1× Heavy-Duty Blow Molded Plastic Storage Case
