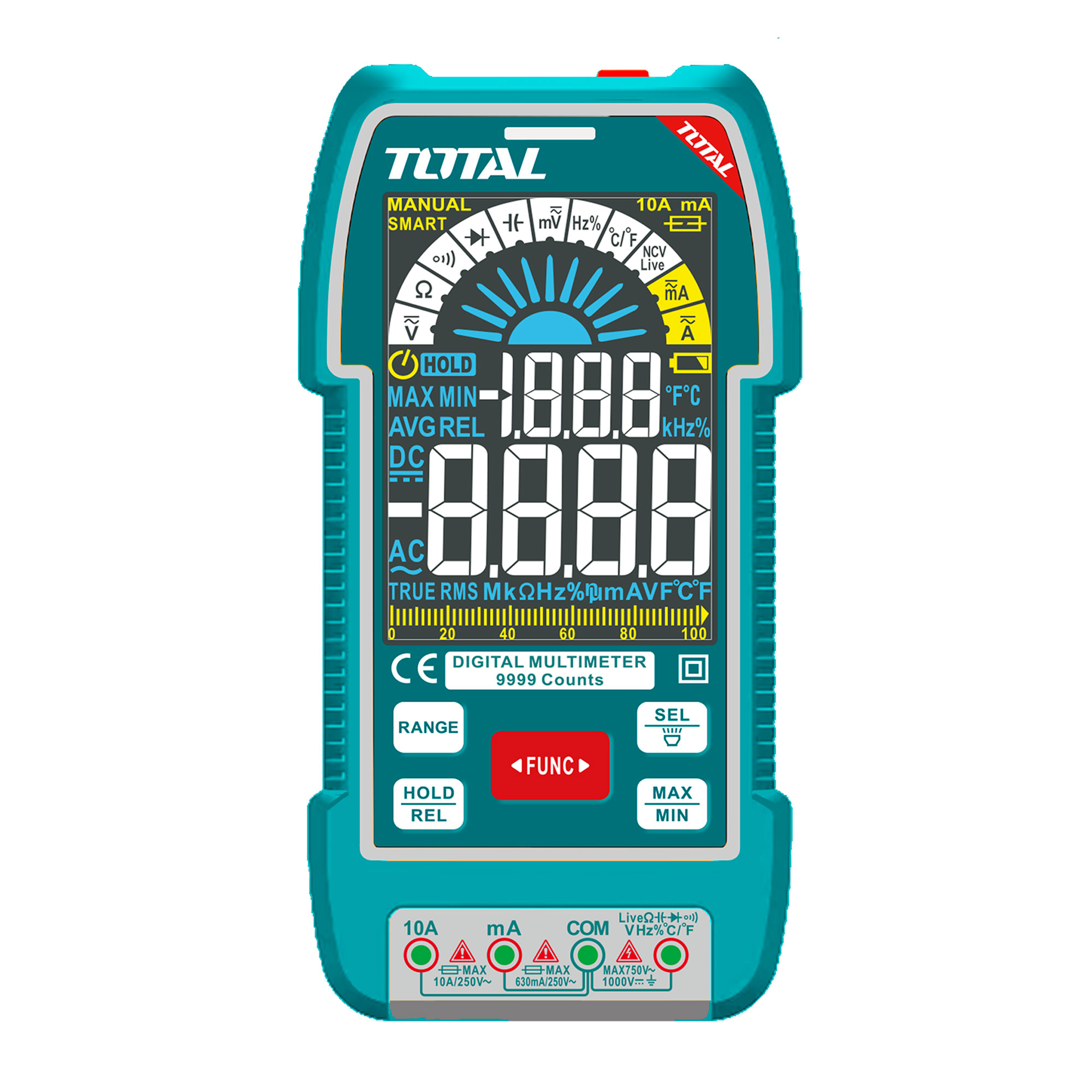

Total TMT5110004 Digital multimeter 1000V 9999Counts

The TOTAL TMT5110004 is a high-precision, industrial-grade digital multimeter featuring a high-contrast VA color display and 9,999-count True RMS resolution.

Engineered for advanced electrical diagnostic work, it combines smart auto-ranging capabilities with intelligent jack LED indicators to prevent miswiring during testing.

Key Specifications & Measurement Ranges

• Model Number: TMT5110004

• Display Type: VA Color Screen with Analog Bar Graph (9999 Counts True RMS)

• Safety Rating: CAT III 1000V / CAT IV 600V

• DC Voltage: 99.99 mV / 999.9 mV / 9.999 V / 99.9 V / 1000 V

• AC Voltage: 99.99 mV / 999.9 mV / 9.999 V / 99.9 V / 750 V

• AC/DC Current: 9.999 mA / 99.99 mA / 600 mA / 10 A

• Resistance: 999.9 Ω up to 99.99 MΩ

• Capacitance: 9.999 nF up to 99.99 mF

• Frequency: 99.99 Hz up to 9.999 MHz

• Temperature: -40.0°C to 1000.0°C (-40.0°F to 1832.0°F)

• Power Source: 3× AAA Batteries (LR03)

Key Features & Safety Functions

• True RMS Measurement: Delivers accurate readings even on complex non-linear AC waveforms (such as variable speed drives, electronic ballasts, and inverted power supplies).

• Jack Input LED Guidance: Features intelligent illumination around the input terminals that guides the user on where to connect test leads based on the selected dial function, avoiding short-circuiting errors.

• VA High-Contrast Color Screen: Ensures clear readability under direct sunlight, in dark electrical enclosures, or at extreme angles.

• Non-Contact Voltage (NCV) Detection: Safely senses live AC voltage behind walls or inside cable looms without physical contact.

• Comprehensive Extras: Integrated work light/flashlight, Data Hold, Relative Value (REL) measurement, MAX/MIN recording, continuity buzzer, and diode testing.
