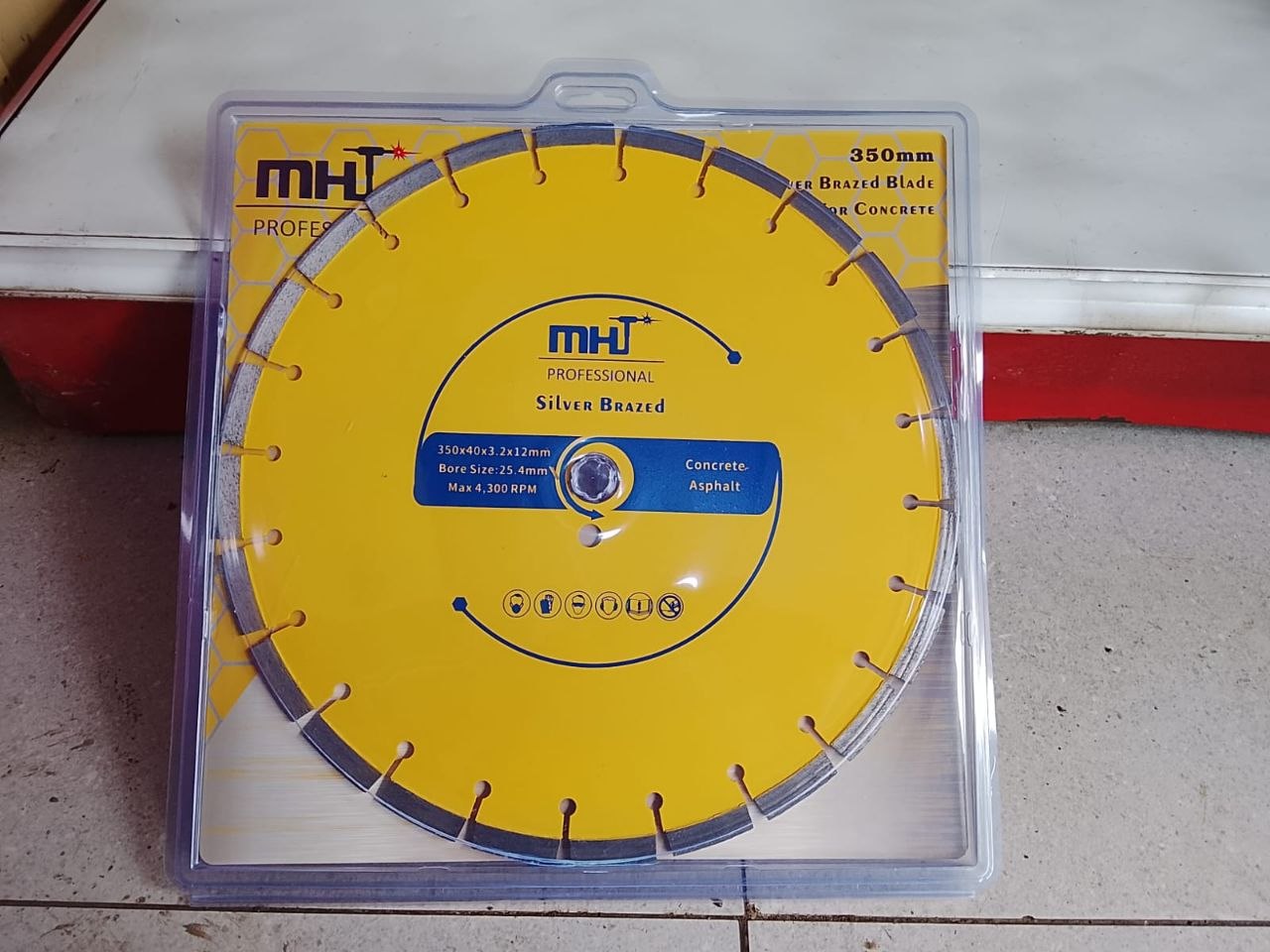

MHT Professional Silver Brazed Diamond Cutting Disc (350mm / 14 inches)
KSh 6,999.00
-
Water Coolant Mandatory: Continuous water flow is required during operation. Dry cutting will overheat the silver braze, causing segment separation and high safety risks.
-
Arbor Fit Verification: Always verify that the inner arbor bore matches your machine shaft precisely without play or wobbling before securing the flange nut.
-
Required PPE: Wear impact-resistant safety goggles, full face shield, ear protection, dust mask, heavy leather gloves, and steel-toe safety boots.
MHT Professional Silver Brazed Diamond Cutting Disc (350mm / 14 inches) is a heavy-duty segmented diamond saw blade designed for high-depth cutting in civil construction, masonry, and stone processing. It is engineered primarily for handheld petrol power cutters (cut-off saws), electric masonry table saws, and light walk-behind floor saws.
Technical Specifications
| Feature | Specification |
| Outer Diameter | 350 mm (14 inches) |
| Bore / Arbor Hole | 25.4 mm (1 inch) or 20 mm (includes reducer ring) |
| Segment Connection | High-Grade Silver Brazing (Silver Soldered) |
| Cutting Depth Capacity | Up to ~120 mm – 125 mm (4.7 to 5 inches) single pass |
| Cutting Mode | Wet Cutting Required (Continuous water coolant mandatory) |
| Max Operating Speed | ~4,370 RPM (80 m/s peripheral speed) |
| Segment Height / Thickness | ~10 mm – 12 mm height / 3.2 mm – 3.6 mm thickness |
| Compatible Equipment | 14″ Petrol Cut-Off Saws (e.g., Stihl TS420, Husqvarna K770), Table Saws |
Key Construction & Performance Features
-
Silver Alloy Braze: Synthetic diamond-metal segments are bonded to the alloy steel core using high-temperature silver soldering, absorbing impact and lateral stress under heavy torque.
-
Efficient Slurry & Heat Management: Wide keyhole or U-shaped expansion slots accelerate slurry clearance and keep the steel core balanced during deep cuts.
-
High Synthetic Diamond Concentration: Matrix formulation delivers fast feed rates through dense minerals, reinforced concrete, and abrasive blockwork.
Recommended Applications
-
Concrete Construction: Medium-reinforced concrete, floor slabs, concrete pipes, lintels, and wall chasing.
-
Masonry & Brickwork: Facing bricks, concrete blocks, paving stones, and clay tiles.
-
Natural Stone: Granite, marble, quartzite, sandstone blocks, and kerbstones.
Safety & Operational Guidelines
-
Water Coolant Mandatory: Continuous water flow is required during operation. Dry cutting will overheat the silver braze, causing segment separation and high safety risks.
-
Arbor Fit Verification: Always verify that the inner arbor bore matches your machine shaft precisely without play or wobbling before securing the flange nut.
-
Required PPE: Wear impact-resistant safety goggles, full face shield, ear protection, dust mask, heavy leather gloves, and steel-toe safety boots.
