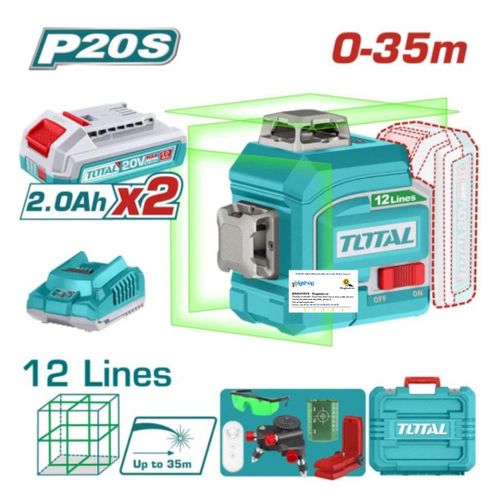

Total TLL3012165 Cordless 3D-laser level

TOTAL TLL3012165 is a high-precision, 12-line 3D green beam laser level designed for professional layout, tiling, drywall installation, framing, and interior fitting tasks.

Powered by a rechargeable lithium-ion battery system, it projects three full $360^\circ$ laser planes (one horizontal plane and two vertical planes) to cover floors, walls, and ceilings simultaneously. High-visibility green laser lines offer significantly better visibility than traditional red lasers under bright lighting and over longer distances.

Key Specifications

• Model Number: TLL3012165

• Laser Projection: 12 Lines — 1× $360^\circ$ Horizontal plane & 2× $360^\circ$ Vertical planes

• Laser Beam Color: High-Visibility Green

• Operating Voltage: 16V / 20V Cordless Li-Ion Platform

• Working Range: 0 to 35 meters

• Levelling Accuracy: $\pm1.5\text{ mm}$ at 7 meters

• Line Accuracy: $\pm1.5\text{ mm}$ at 7 meters

• Self-Levelling Angle: $\le 4^\circ$

• Laser Class: Class II ($<1\text{ mW}$)

• Operating Temperature: $0^\circ\text{C}$ to $+40^\circ\text{C}$

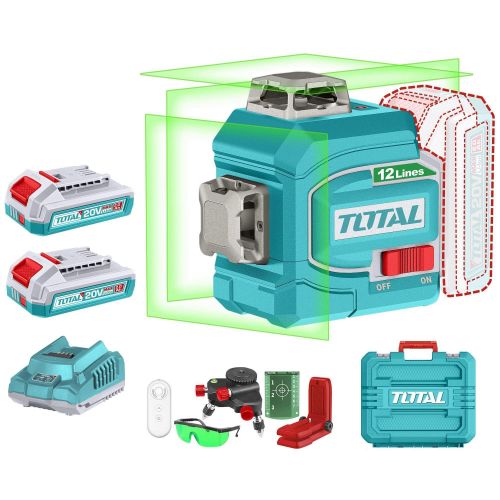

Key Accessories Included

• 1× Rechargeable Lithium-Ion Battery Pack

• 1× Fast Charger

• 1× Magnetic Liftable Rotating Stand / Wall Mount

• 1× Fine-Adjustment Rotary Base with leveling bubbles and adjustable feet

• 1× Remote Control Unit (for switching lines from a distance)

• 1× Laser Enhancement Target Plate & Green Safety Glasses

• 1× Heavy-Duty Carrying Case / Plastic Storage Box

Key Highlights & Benefits

• $360^\circ$ 3D Multi-Line Coverage: Projects simultaneous horizontal and vertical $360^\circ$ continuous laser planes, allowing users to align floors, walls, and ceilings simultaneously without re-positioning the unit.

• Ultra-Bright Green Laser: Green diodic technology provides up to $4\times$ greater visibility to the human eye compared to red lasers over long distances.

• Self-Levelling & Manual Lock Mode: Automatically compensates for surface angles up to $4^\circ$; features a pendulum lock mechanism for projecting sloped lines (e.g., staircases and handrails).

• Remote Controlled Operation: Allows operators to toggle horizontal and vertical laser lines individually from a distance, extending battery life and reducing movement around the tripod setup.
