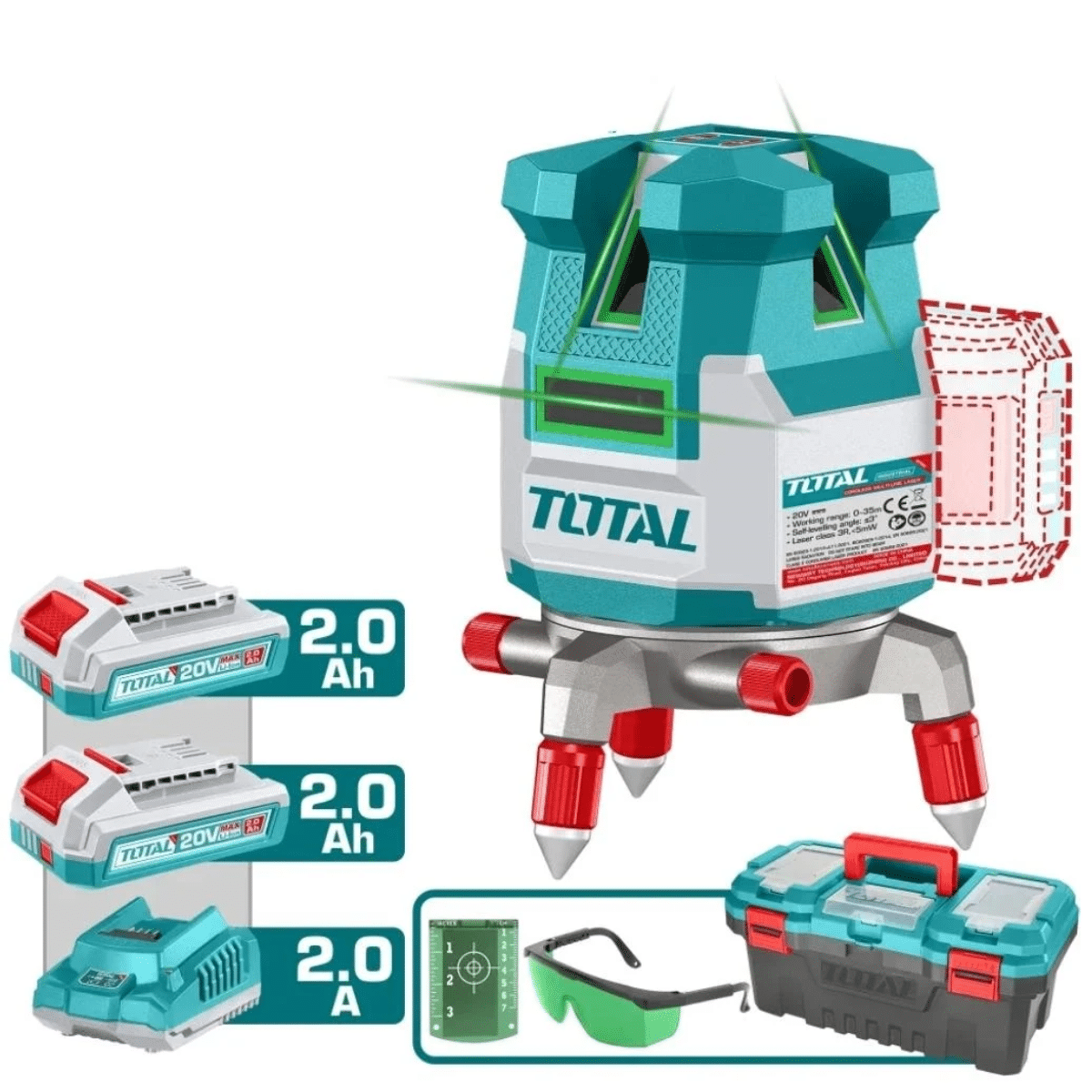

Total TLL3052063 Cordless multi-line laser 0~17m

The TOTAL TLL3052063 (also referenced under the TLL305206 series) is a 20V multi-line cordless green laser level designed for medium-range layout, interior partitioning, tiling, and electrical line installations.

Featuring a 1 Horizontal + 4 Vertical Line configuration (5 lines total) with an integrated $360^\circ$ micro-adjust rotary base, it operates on the standard 20V P20S battery platform across working distances from 0 to 17 meters.

Key Specifications

• Model Number: TLL3052063 (Solo / Bare Tool configuration options available)

• Operating Voltage: 20V Max (TOTAL P20S Cordless Platform)

• Laser Configuration: 5 Lines — 1× Horizontal Line & 4× Vertical Lines forming 90° cross-lines on walls/ceilings plus plumb point

• Beam Color: High-Visibility Green Laser Beam

• Working Range: 0 to 17 meters

• Levelling Accuracy: $\pm1.5\text{ mm}$ at 7 meters

• Levelling Time: $<3\text{ seconds}$

• Self-Levelling Range: $\le 4^\circ$

• Laser Class: Class II ($<1\text{ mW}$)

• Operating Temperature: $0^\circ\text{C}$ to $+40^\circ\text{C}$
