Total TMT7610001 Digital AC clamp meter 1200A 6000Counts

KSh 7,999.00

Key Features

High AC Current Capacity: Measures up to 1200A AC without breaking the circuit, making it suitable for industrial machinery, heavy commercial panels, and main breakers.
True RMS Accuracy: Provides precise readings on clean sinusoidal waves as well as non-linear loads with harmonic distortion.
VA Color Screen: Offers high visibility and continuous legibility across dark distribution boards and outdoors in sunlight.
Advanced Diagnostics: Includes Inrush Current measurement, Low Impedance (LowZ) mode to prevent ghost voltages, Variable Frequency Drive (LPF/VFD) filter mode, phase sequence identification, diode testing, and non-contact voltage (NCV) sensing.
Integrated Flashlight & Data Hold: Built-in LED work light illuminates dark breaker boxes, while Data Hold freezes real-time readings.

Add to wishlist

Category: Measuring Tools Tag: Digital AC clamp meter

Description

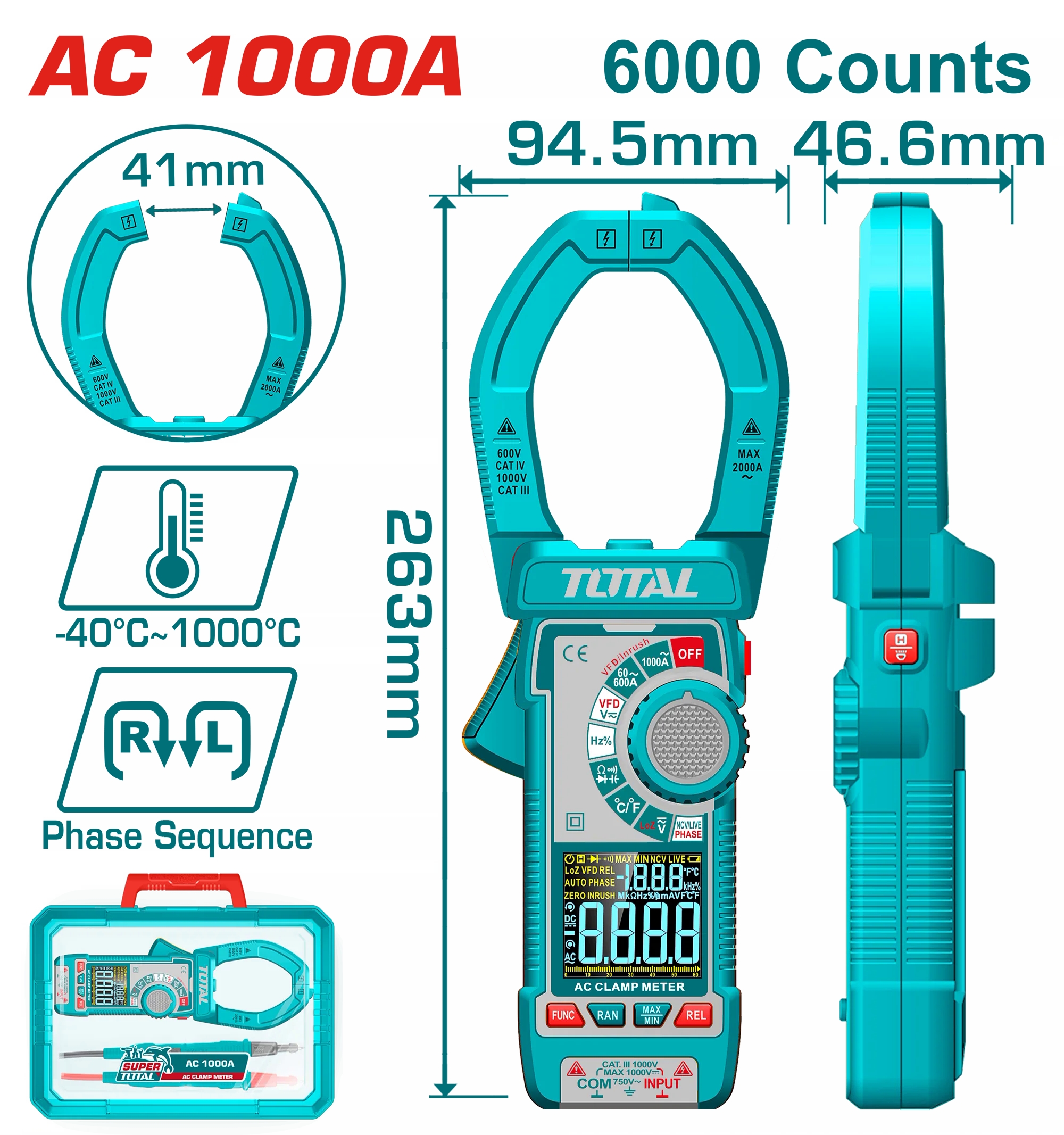

TOTAL TMT7610001 is a heavy-duty, industrial-grade digital AC clamp meter featuring a high-contrast VA color screen and a 6,000-count True RMS display. It is built for non-intrusive AC current measurement up to 1,200A alongside complete multimeter functions.

Technical Specifications

Parameter	Measurement Range
Display	True RMS, 6,000 Counts (VA Color Display)
AC Current	60A / 600A / 1200A
DC Voltage	600 mV / 6 V / 60 V / 600 V / 1000 V
AC Voltage	600 mV / 6 V / 60 V / 600 V / 750 V
Resistance	600 Ω to 60 MΩ
Capacitance	60.00 nF to 60.00 mF
Frequency	10 Hz to 10 MHz
Temperature	-40°C to 1000°C (-40°F to 1832°F)
Power Supply	3 × 1.5V AAA (LR03) batteries
