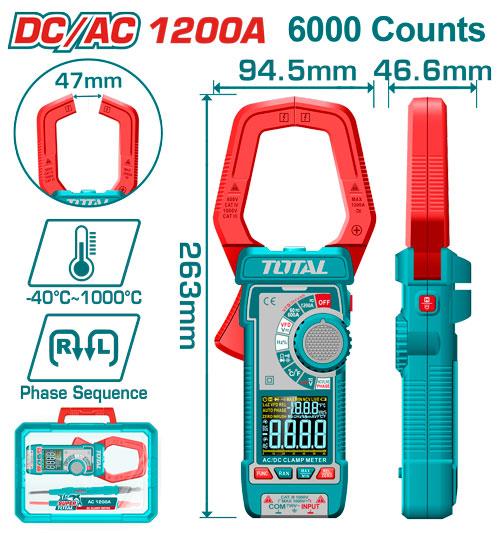

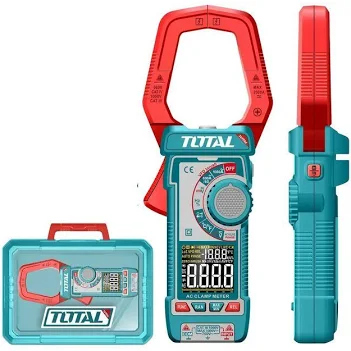

Total TMT7610002 DC/AC clamp meter 1200A 6000Counts

KSh 8,950.00

Key Features

AC & DC Current Sensing: Hall-effect jaw sensors allow non-invasive current measurements on both DC systems (solar panels, EV chargers, heavy DC machinery) and AC systems up to 1,000A.
VA Color Display: Provides crisp, high-contrast visibility across dark electrical cabinets and bright outdoor environments.
Advanced Electrical Diagnostics: Features Inrush Current measurement for motor startup spikes, Low Impedance (LowZ) mode to eliminate ghost voltages, Variable Frequency Drive (LPF/VFD) filter mode, phase sequence identification, and non-contact voltage (NCV) sensing.
True RMS Accuracy: Delivers precise readings on distorted non-linear waveforms and variable frequency drives.
Worklight & Data Hold: Built-in LED light illuminates dark work areas, while the Data Hold button freezes real-time readings.

Add to wishlist

Category: Measuring Tools Tag: clamp meter

Description

TOTAL TMT7610002 is an industrial-grade, high-capacity DC/AC clamp meter equipped with a high-contrast VA color screen and a 6,000-count True RMS display. Unlike AC-only models (like the TMT7610001), the TMT7610002 measures both Direct Current (DC) and Alternating Current (AC) via the clamp jaw, making it suitable for solar/PV installations, automotive circuits, battery storage systems, and heavy AC electrical panels.

Technical Specifications

Parameter	Measurement Range
Display	True RMS, 6,000 Counts (VA Color Display Screen)
DC/AC Current (via Clamp)	60 A / 600 A / 1,000 A
DC Voltage	600 mV / 6 V / 60 V / 600 V / 1000 V
AC Voltage	600 mV / 6 V / 60 V / 600 V / 750 V
Resistance	600 Ω to 60 MΩ
Capacitance	60.00 nF to 60.00 mF
Frequency	10 Hz to 10 MHz
Temperature	-40°C to 1000°C (-40°F to 1832°F)
Power Supply	3 × 1.5V AAA (LR03) Batteries
